Static Field Modeling of a Halbach Rotor
Application ID: 14369

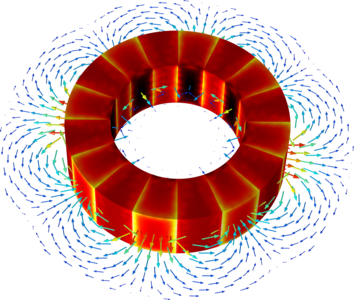

This model presents the static field modeling of an outward flux focusing magnetic rotor using permanent magnets. This magnetic rotor is also often called a Halbach rotor. The use of permanent magnets in rotatory devices such as motors, generators and magnetic gears is increasing. The accurate modeling of a permanent magnets fields is important. This model illustrates how to calculate the magnetic field of a 3D rotor by modeling only a single pole of the rotor using the symmetry feature.
This model example illustrates applications of this type that would nominally be built using the following products:AC/DCモジュール
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the 製品仕様一覧 and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
