Geometry: How to combine multiple lines to form a continuous line

Posted 2017/01/23 11:47 GMT-5 Geometry Version 5.2a 1 Reply

Vincent Roy
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

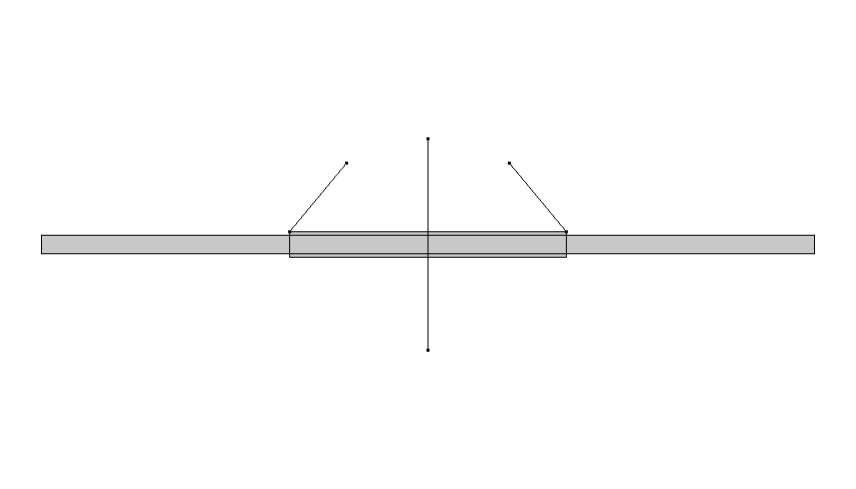

I try to make a diamond shape with curved corners.

1-How can I make a curve that goes through the three points? In addition, I would like that when the three lines are combined, it will form a continuous line.

2- I don't know if I complicate my life by doing this, if it does, your suggestions will be appreciated.

Thank you

Attachments:

1 Reply Last Post 2017/01/23 17:56 GMT-5
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 2017/01/23 17:56 GMT-5
Hello Vincent,
You can use an Interpolation Curve.
Best regards,
Jeff
Hello Vincent, You can use an Interpolation Curve. Best regards, Jeff

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
