Beam and truss working together

Posted 2011/06/29 9:06 GMT-4 1 Reply

Jorge Ballaben Ballaben
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

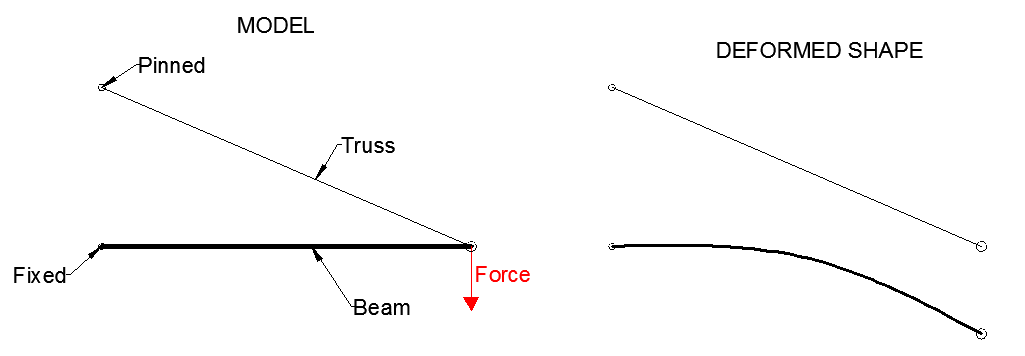

Hi, i'm trying to solve a simple model that you can see in the attached file.

When i try to view the results, the deformation of the beam element and truss element are separated, in fact, only the beam shows tension and deformation.

How can make the sistem work together?

Thanks.

Jorge.

Attachments:

1 Reply Last Post 2011/06/29 10:52 GMT-4
Nagi Elabbasi Facebook Reality Labs
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 2011/06/29 10:52 GMT-4
Since the Truss and Beam are different physics you have to make sure the displacement variables they use are the same. COMSOL automatically assigns a “u” displacement field to one physics and a “u2” field to the other. Replace the u2 by u.

Nagi Elabbasi
Veryst Engineering
Since the Truss and Beam are different physics you have to make sure the displacement variables they use are the same. COMSOL automatically assigns a “u” displacement field to one physics and a “u2” field to the other. Replace the u2 by u. Nagi Elabbasi Veryst Engineering
