Dear all,

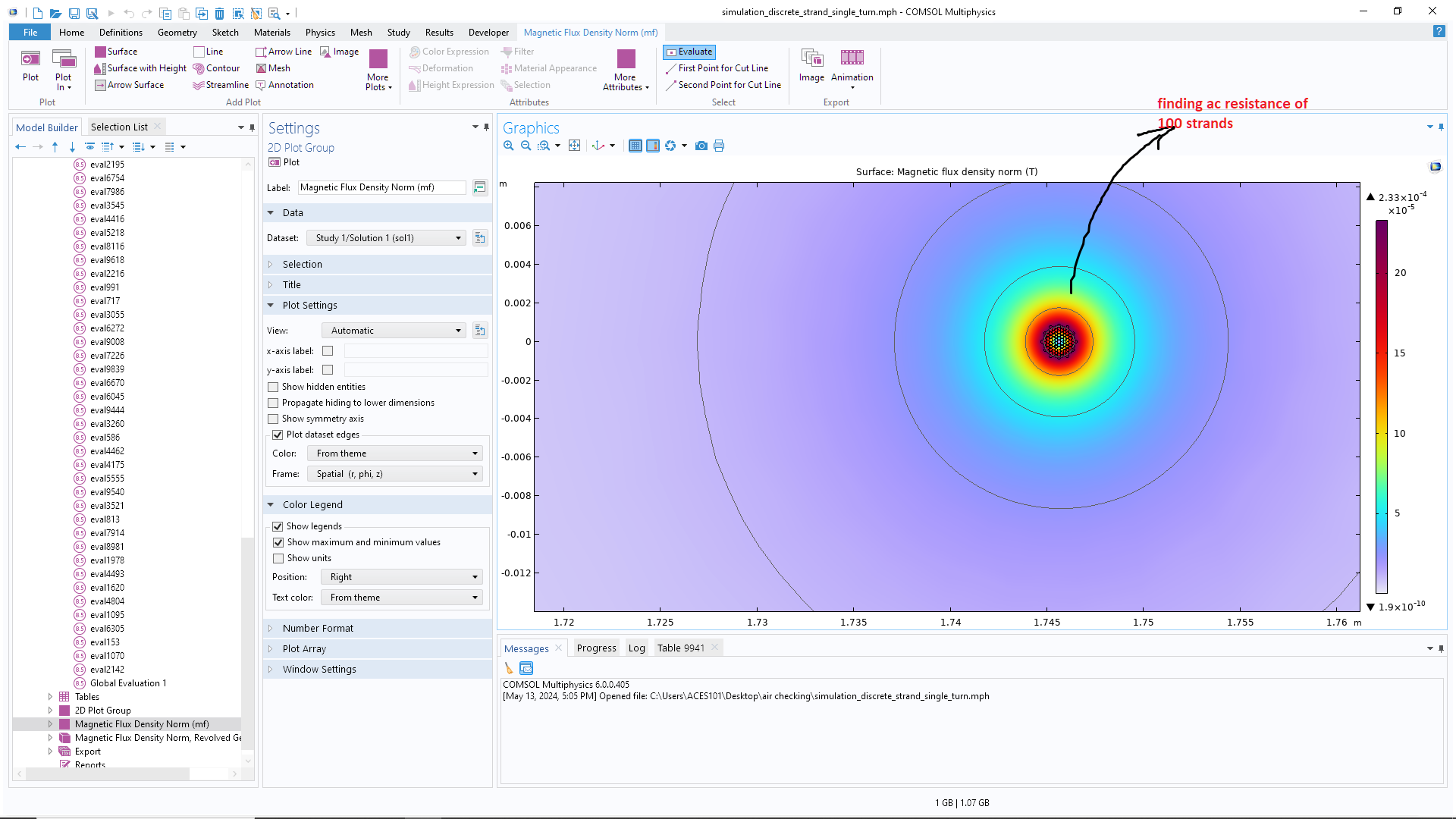

    I am simulating coil strands to know its AC resistance. i am using LiveLink for MATLAB to automate this task. however, for 10 turns coil with 100 strands, the total simulation time goes to 5 hours while for 10 turns with 300 strands, the total simulation time goes 50+ hours.

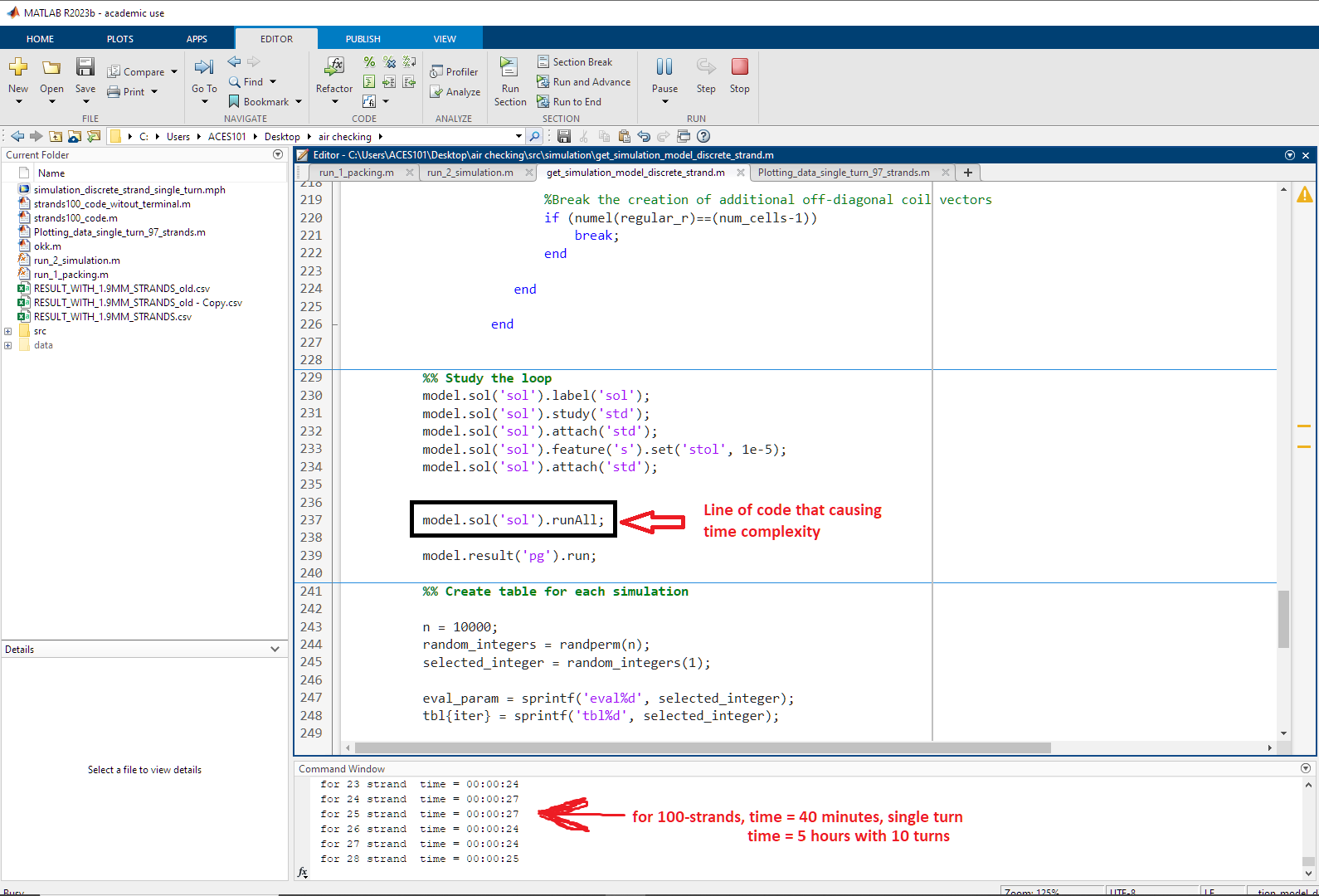

    by profiler code checking, i found that *** model.sol('sol').runAll;*** is taking 95% of overall simulation time. can you please suggests me to reduce the time duration of simulations.
I am using regular mesh with minimal complexity.

best regards
thanks


1 Reply Last Post 2024/05/13 12:21 GMT-4
Dave Greve Certified Consultant

Please login with a confirmed email address before reporting spam

Posted: 4 weeks ago 2024/05/13 12:21 GMT-4
Updated: 4 weeks ago 2024/05/13 12:21 GMT-4

Be aware that some problems are just too big.

However based on your drawing it looks like you have six-fold symmetry. Use it.

Be aware that some problems are just too big. However based on your drawing it looks like you have six-fold symmetry. Use it.
