Air-Cooled Battery Energy Storage System
Application ID: 121131

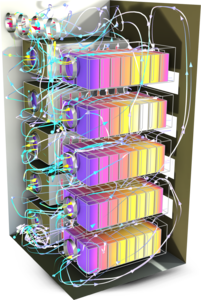

Tutorial model of an air-cooled battery energy storage system (BESS).
The model includes conjugate heat transfer with turbulent flow, fan curves, internal screens, and grilles. It features several interesting aspects:
- Fully parameterized geometry, which can be modified for different cell sizes, numbers of cells in each module, and number of modules in the cabinet.
- Use of fan curves from tabulated data, for example from fan manufacturers.
- Definition of flow resistance across external grilles and internal screens.
- The definition of heat sources due to battery losses.
A possible extension of the model would be to include the electrochemistry of the batteries in order to get a more accurate heat source due to electrochemical and ohmic losses.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the 製品仕様一覧 and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
