Angle Crack Embedded in a Plate

Application ID: 90101

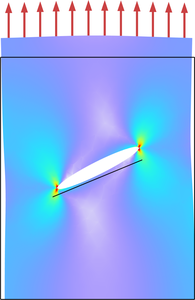

This example reproduces a NAFEMS benchmark in which a plate with an angle crack is subjected to tensile loading. The J-integral is calculated and the stress intensity factors for Mode I and Mode II are compared to the benchmark results for several crack angles.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
