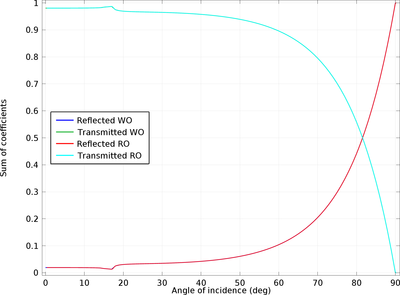

This model uses the Wave Optics Module and the Ray Optics module to model the propagation of rays through a diffraction grating at different angles of incidence. It uses the S-parameters computed by the Electromagnetic Waves, Frequency Domain interface on a unit cell of the grating to specify the reflectance and transmittance of each diffraction order in the Geometrical Optics interface, allowing ray propagation through the grating to be modeled over length scales much larger than the width of the unit cell.
