Piezoelectric Energy Harvester

Application ID: 21421

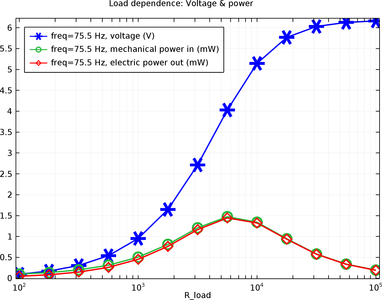

This model shows how to analyze a simple, cantilever based, piezoelectric energy harvester. A sinusoidal acceleration is applied to the energy harvester and the output power is evaluated as a function of frequency, load impedance and acceleration magnitude.

This model example illustrates applications of this type that would nominally be built using the following products:
