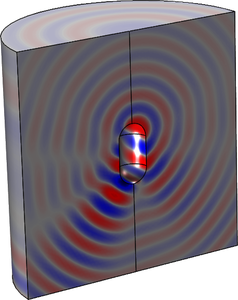

Plane Wave Scattering off a 2D Axisymmetric Object: Plane Wave Expansion Approach

Application ID: 51311


The problem of a plane wave scattering off a cylinder-shaped object suggests the use of the 2D axisymmetric formulation. This can save computation time and reduce the memory usage compared to the model in 3D space.

This example demonstrates the use of the built-in plane wave expansion functionality to solve the problem. It also highlights the steps required during the study and the postprocessing.

This model example illustrates applications of this type that would nominally be built using the following products:
