アプリケーションギャラリには電気, 構造, 音響, 流体, 熱および化学分野に関連する COMSOL Multiphysics® チュートリアルおよびデモアプリファイルが用意されています. これらの例はチュートリアルモデルまたはデモアプリファイルとそれに付随する手順をダウンロードすることにより独自のシミュレーション作業の開始点として使用できます.
クイック検索機能を使用して専門分野に関連するチュートリアルやアプリを検索します. MPHファイルをダウンロードするには, ログインするか, 有効な COMSOL ライセンスに関連付けられている COMSOL Access アカウントを作成します. ここで取り上げた例の多くは COMSOL Multiphysics® ソフトウェアに組み込まれ ファイルメニューから利用できるアプリケーションライブラリからもアクセスできることに注意してください.
内部または外部の短絡や過度の加熱などの不適切な使用により, 個々のバッテリセルが熱暴走状態になり, 大量の熱が発生する場合があります. 熱暴走中に隣接するセル間で十分な熱が伝達されると, 隣接するセルも熱暴走状態になります. 熱暴走がパック全体に広がると, 重大な安全上の危険が生じます. バッテリパックを設計する際には, 暴走の伝播を緩和するための対策を講じる必要があります. このチュートリアルでは, イベントベースの熱源を使用して, 24個の円筒形セルで構成されるパック内の熱伝達と, その結果生じる熱暴走の伝播をシミュレートします. 詳細を見る
This example shows how to set up a piezoelectric transducer problem following the work of Y. Kagawa and T. Yamabuchi. The composite piezoelectric ultrasonic transducer has a cylindrical geometry that consists of a piezoceramic layer, two aluminum layers, and two adhesive layers. The ... 詳細を見る
この例では, 4C 放電中のバッテリパック内の温度分布をモデル化する方法を示します. パックは, まず2つの円筒電池を並列に接続して構成されます. 次に, 並列接続された6つのペアを直列に接続して, 完全なパックを作成します. (これは 6s2p 構成とも呼ばれます.) 問題の対称性は 2回使用されるため, 3つの電池の温度分布のみを解けば済みます. 適切な熱源を生成するために, 集中電池インターフェースの3つのインスタンスが使用され, その後, 3D ジオメトリ内の1つの伝熱インターフェースに結合されます. 詳細を見る
This tutorial drives a capacitively coupled plasma with an L-type matching network at high and low powers. At low power, where the harmonics in the current are low, prefect matching is obtained at the chosen power value. Sweeps over power, frequency, and pressure are performed and their ... 詳細を見る
This app demonstrates the following: Creating apps for small screens such as smartphones User-interface navigation with a top menu typically used on websites Dynamically hiding forms using card stacks to minimize the space required by the app Changing appearance by using different ... 詳細を見る
The contact angle of a two-fluid interface with a solid surface is determined by the balance of the forces at the contact point. In electrowetting the balance of forces at the contact point is modified by the application of a voltage between a conducting fluid and the solid surface. In ... 詳細を見る

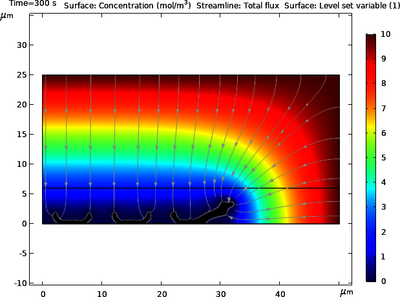

This example models galvanic corrosion between two different phases in a magnesium alloy for a representative cross-sectional microstructure configuration. The Level Set interface is used here to model dissolution of a constituent phase leading to topological changes. The electrode ... 詳細を見る
Streamers are transient filamentary electric discharges that can develop in a nonconducting background in the presence of an intense electric field. These discharges can attain high electron number density and consequently a high concentration of chemical active species that are relevant ... 詳細を見る
An ion-sensitive field-effect transistor (ISFET) is constructed by replacing the gate contact of a MOSFET with an electrolyte of interest. The concentration of a specific ionic species in the electrolyte can be determined by measuring the change in the gate voltage due to the interaction ... 詳細を見る
This model simulates a temperature profile in a number of cells and cooling fins in a liquid-cooled battery pack. The model solves in 3D and for an operational point during a load cycle. A full 1D electrochemical model for the lithium battery calculates the average heat source. 詳細を見る
