Periodic microstructures are frequently found in composite materials, metallic foams, and sandwich structures. They can be described by a unit cell repeated along the three Cartesian directions. This app computes homogenized material properties of various periodic microstructures and ... 詳細を見る
A model of a thermal microactuator requires the coupled simulation of electric current conduction with heat generation, heat conduction, and structural stresses and strains due to thermal expansion. The purpose of this model is to demonstrate how to access the cluster computing ... 詳細を見る
This is a conceptual model illustrating how to couple fluid-structure interaction, heat transfer, and thermal expansion. A bimetallic strip in an air channel is heated so that it bends. After some time, an airflow with an inlet temperature which varies in time is introduced. As a ... 詳細を見る
Portal Cranes are common when handling heavy loads. In this example, the Beam interface is used to compute the stresses in a portal crane designed for lifting 15 tons. Three load cases are considered: self weight, payload, and thermal expansion on a hot summer day. An internal hinge ... 詳細を見る

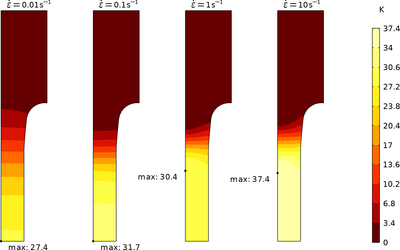

In this example, a tensile test is simulated at four different strain rates. The Johnson–Cook hardening law is used to model the strain rate dependency of the plastic hardening. The temperature distribution and thermal expansion caused by the heating generated by the plastic ... 詳細を見る

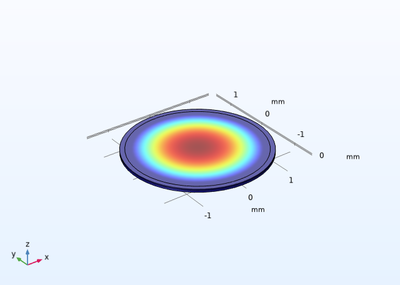

This 2D axisymmetric model demonstrates the operation of a pyroelectric detector found in instruments for measuring laser energy. A disk of lithium niobate (LiNbO3) is sandwiched between two electrodes and connected to an external circuit. The disk is mounted on a ring-shaped ... 詳細を見る
Basin-type insulators are critical components in Gas-Insulated Metal-Enclosed Switchgear (GIS). During the manufacturing process, the curing of epoxy resin can generate residual stresses that may lead to the formation of cracks. Over time, these cracks can cause partial discharges, ... 詳細を見る
A steel billet is quenched in oil from its austenitic state. A 2D axisymmetric model is used to simulate the coupled problem of austenite decomposition, heat transfer, and solid mechanics. During the quenching process, the austenite decomposes into a combination of ferrite, pearlite, ... 詳細を見る

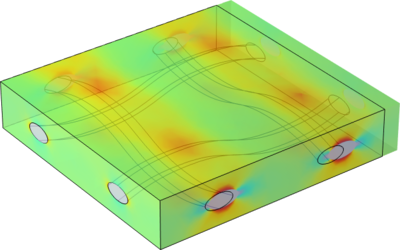

This example demonstrates how to use temperature dependent materials within the Nonlinear Structural Materials Module. A large container holds pressurized hot water. Several pipes are attached to the pressure vessel. Those pipes can rapidly transfer cold water in case of an emergency ... 詳細を見る
ブラケットモデルは, 構造力学モジュールを使用した構造力学モデリングの入門として使用されます. 次の機能が導入されています: 基本: 静的線形解析 パラメトリックスタディ 初期ひずみを含む 熱膨張のモデル化 リジッドコネクターの追加 バネ条件の追加 シェルインターフェースを使用したモデリング 過渡解析 固有周波数解析 プレストレス固有周波数解析 周波数応答解析 プレストレス周波数応答解析 非調和周期励起に対する動的応答 慣性緩和解析 幾何学的非線形問題: 線形座屈モデリング 接触問題のモデリング 接触のあるプレストレスボルトの解析 ... 詳細を見る
