How to model a curved cylinder?

Posted 2016/01/13 18:40 JST 2 Replies

Chachin Selvakumar
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

I have been trying to simulate a blood flow inside a vein in which I have assumed the vein as a simple curved pipe. In the geometry section the cylinder option is meant only for straight and hollow cylinders. How to model a curved pipe in comsol 4.3b?
2 Replies Last Post 2016/01/13 22:11 JST
Lasse Murtomäki
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 2016/01/13 19:09 JST
How about a section of a torus?
How about a section of a torus?
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 2016/01/13 22:11 JST
Hello Chachin,

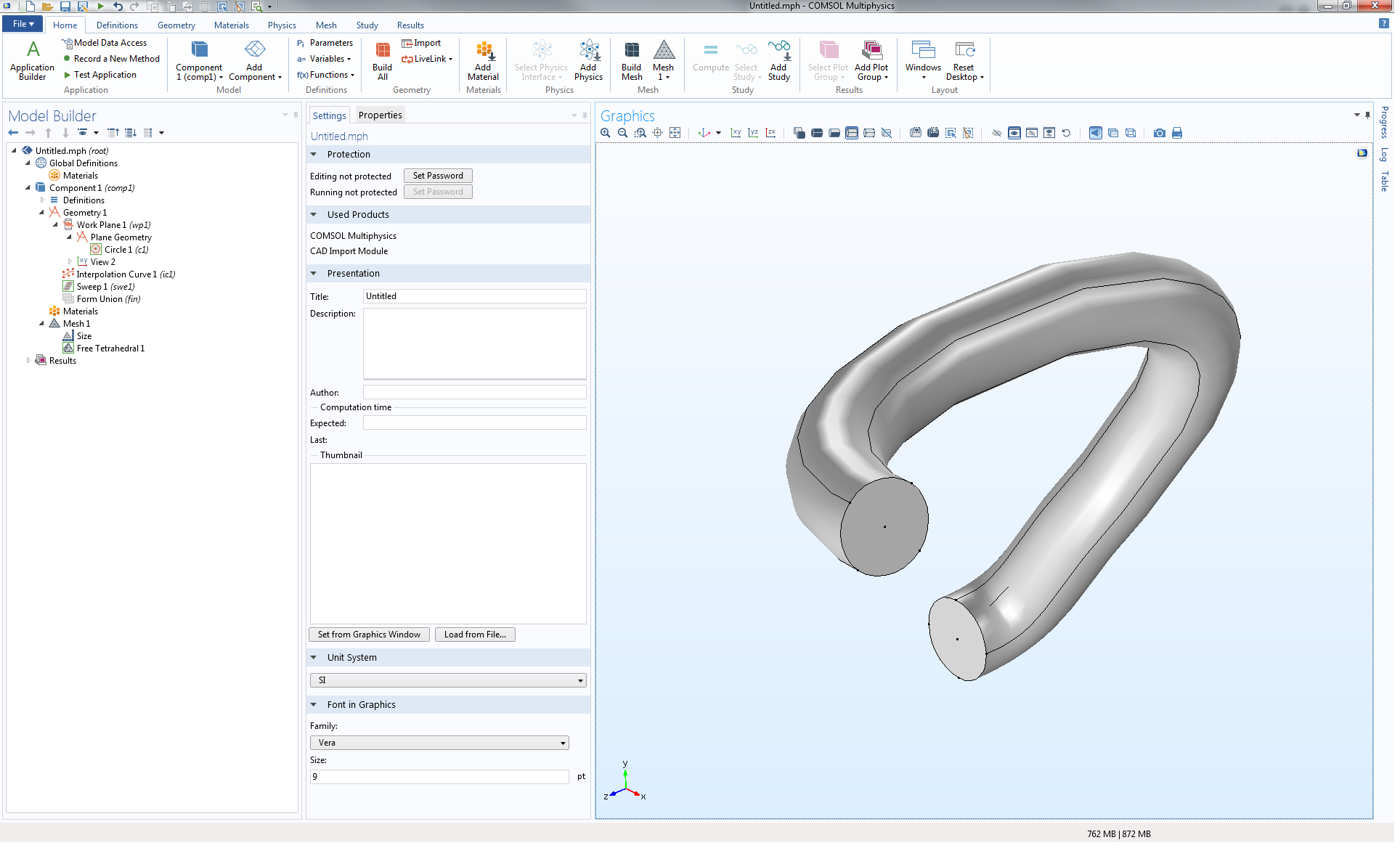

As Lasse suggested, a fraction of a torus could work for you in some cases. A more general solution is to sweep a disc along a curve (be it a polygon, parametric curve or an interpolation curve, etc). See the attached screenshot.
Best,
Jeff
Hello Chachin, As Lasse suggested, a fraction of a torus could work for you in some cases. A more general solution is to sweep a disc along a curve (be it a polygon, parametric curve or an interpolation curve, etc). See the attached screenshot. Best, Jeff
