Extrude with different values

Posted 2018/05/01 23:13 JST General, Geometry 4 Replies

Sherry
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello all,

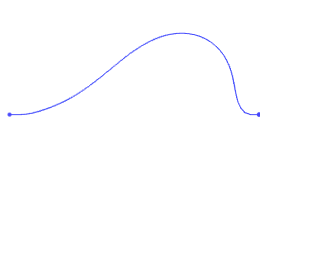

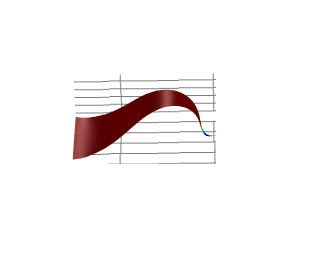

I want to extrude a curve with different values. I mean I want to make some parts of the curve thicker and some parts thinner. How can I do it with extrude operator? I've attached 2 pictures. Could you please help me.

Kind regards

Attachments:

4 Replies Last Post 2018/05/08 20:51 JST
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 2018/05/03 2:39 JST

You could try to extrude a curve based on the thickness profile from perpendicular plane and then apply partition, delete or logical operations.

Cheers Edgar

-------------------
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
You could try to extrude a curve based on the thickness profile from perpendicular plane and then apply partition, delete or logical operations. Cheers Edgar
Sherry
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 2018/05/03 3:01 JST

Dear Edgar,

Could you please explain more?

Kind regards

Dear Edgar, Could you please explain more? Kind regards
Benno Ellerböck
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 2018/05/06 19:49 JST

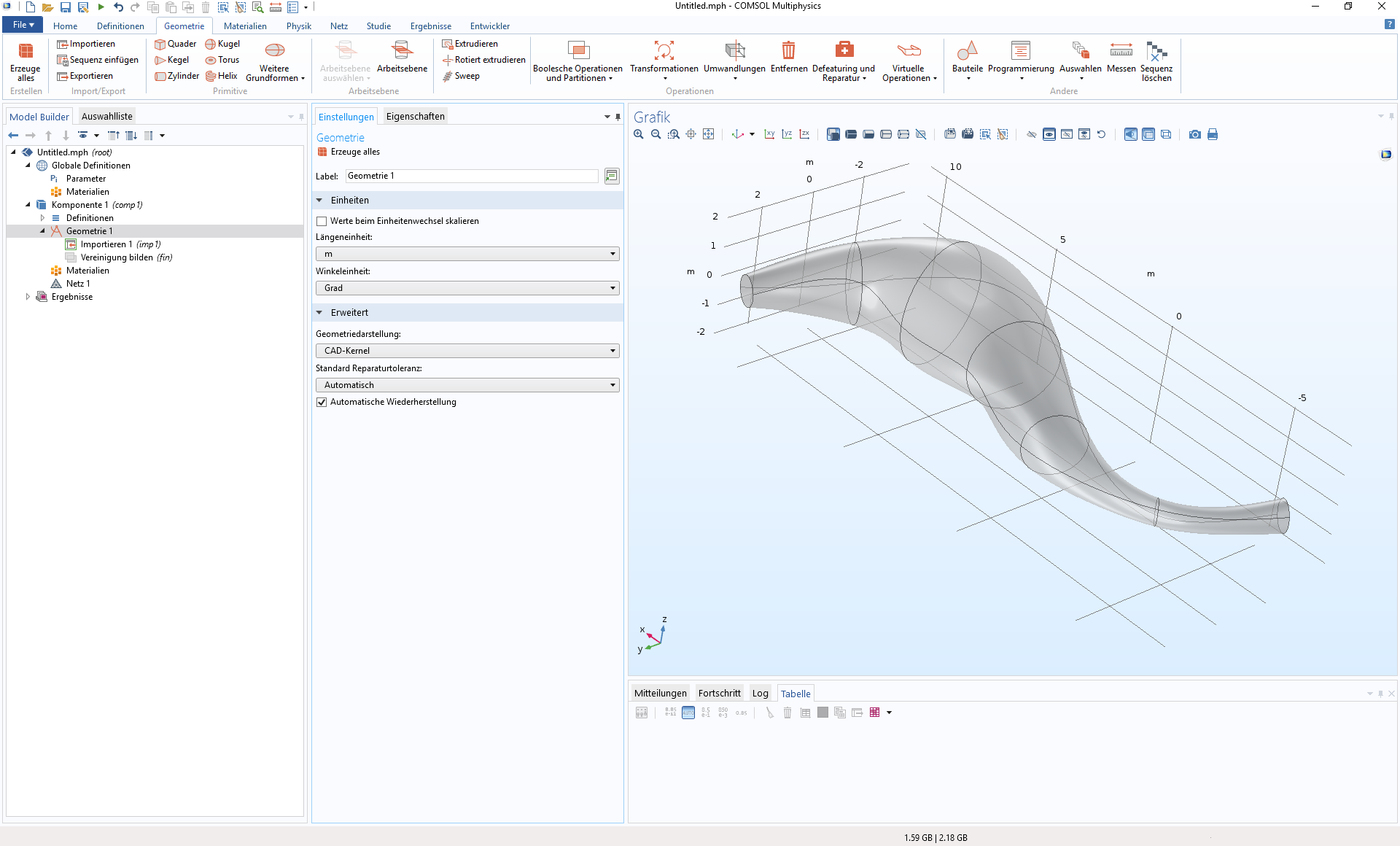

Hello Shaghayegh, you can import such a spline from a 3d-CAD-Programm. It's easy to build a spline with the loft-function (see attached example).

Kind regards Benno from Munich

Hello Shaghayegh, you can import such a spline from a 3d-CAD-Programm. It's easy to build a spline with the loft-function (see attached example). Kind regards Benno from Munich

Attachments:

Sherry
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 2018/05/08 20:51 JST

Hi Benno,

Great! thanks a lot.

Best regards, Shaghayegh

Hi Benno, Great! thanks a lot. Best regards, Shaghayegh
