potential field from a vectorfield

Please login with a confirmed email address before reporting spam

Dear all,

I would like to plot an isosurface which is perpendicular to a given vectorfield in 3D. Can anyone help?

Thanks
Ysbrand

3 Replies Last Post 2011/06/17 11:56 GMT-4

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 2011/06/17 9:56 GMT-4
Hi Ysbrand,

I think, if you plot your vector field (let's say electric field Ex, Ey, Ez) as volume arrow, than your isosurface from norm.E should be perpendicular.

Ralf
Hi Ysbrand, I think, if you plot your vector field (let's say electric field Ex, Ey, Ez) as volume arrow, than your isosurface from norm.E should be perpendicular. Ralf


Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 2011/06/17 10:32 GMT-4
Hi Ralf,

Thanks. I will try that and come back to you with the results ...

Ysbrand
Hi Ralf, Thanks. I will try that and come back to you with the results ... Ysbrand

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 2011/06/17 11:56 GMT-4
Dear Ralf,

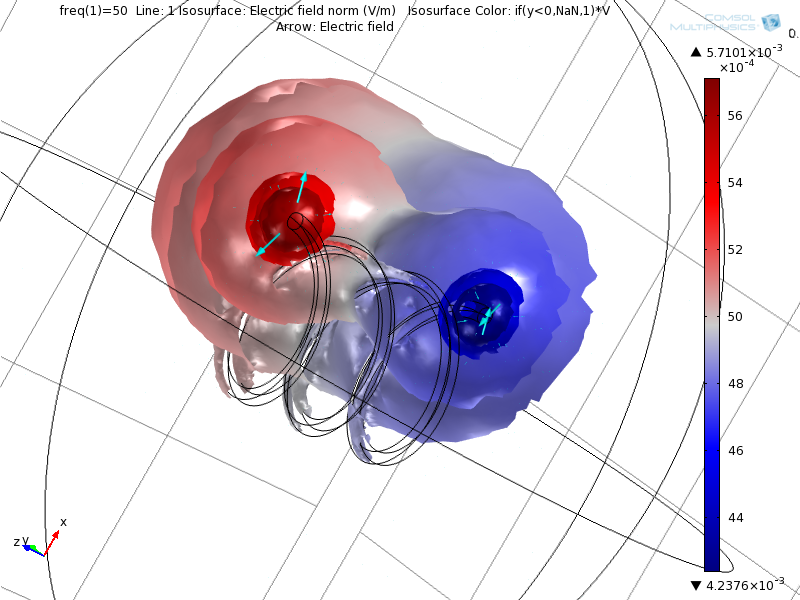

At some points it seems to work but not all vectors are perpendicular to the surface ... see fig. (vectors have been normalized to show the direction more clearly). Thanks a lot for the suggestion though.

Ysbrand
Dear Ralf, At some points it seems to work but not all vectors are perpendicular to the surface ... see fig. (vectors have been normalized to show the direction more clearly). Thanks a lot for the suggestion though. Ysbrand
