Solving Helmholtz Equation in 2 Domains

Posted 2021/01/08 6:18 GMT-5 Modeling Tools & Definitions, Studies & Solvers, Equation-Based Modeling Version 5.5 4 Replies

Oran Meir
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

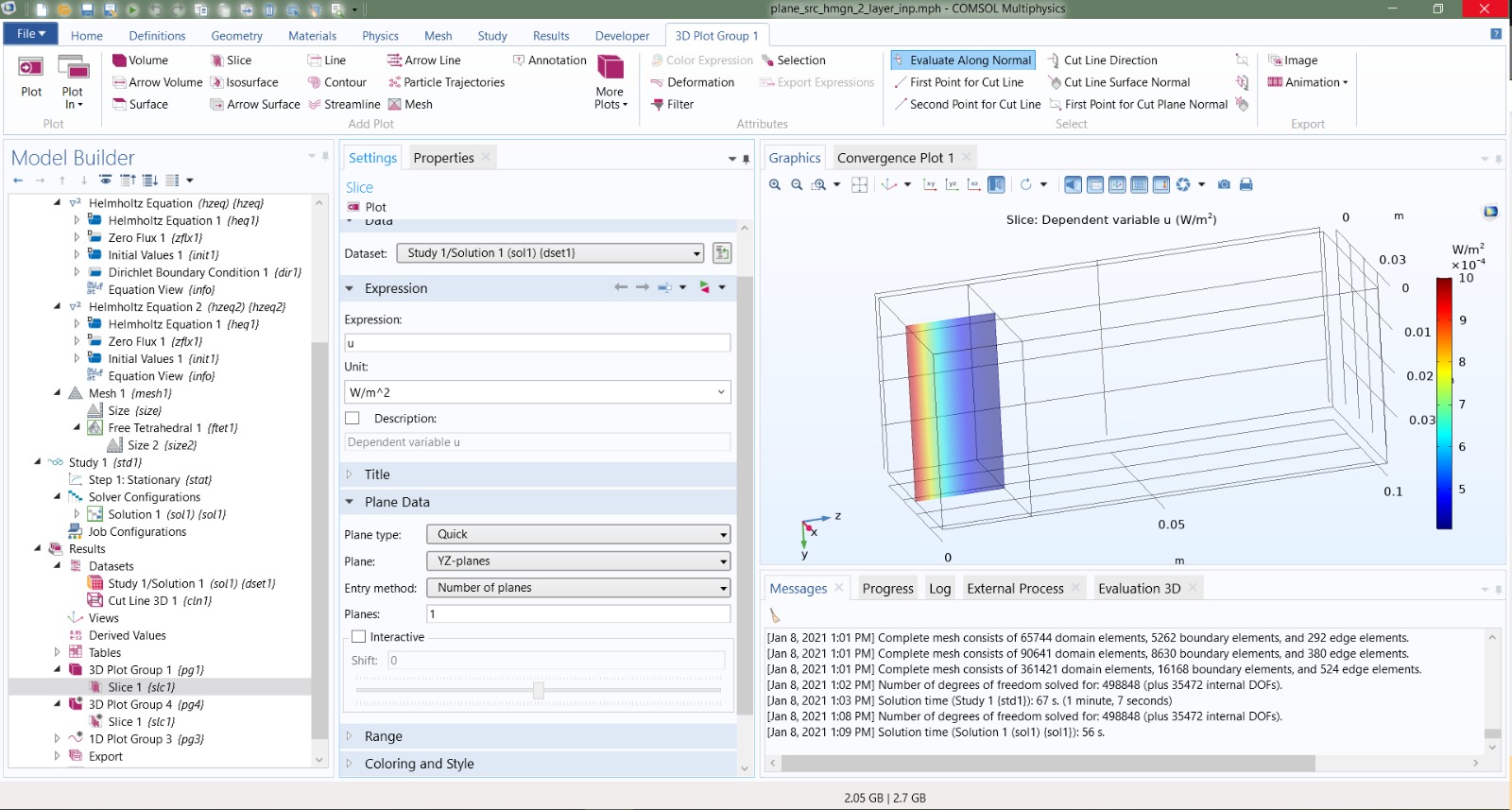

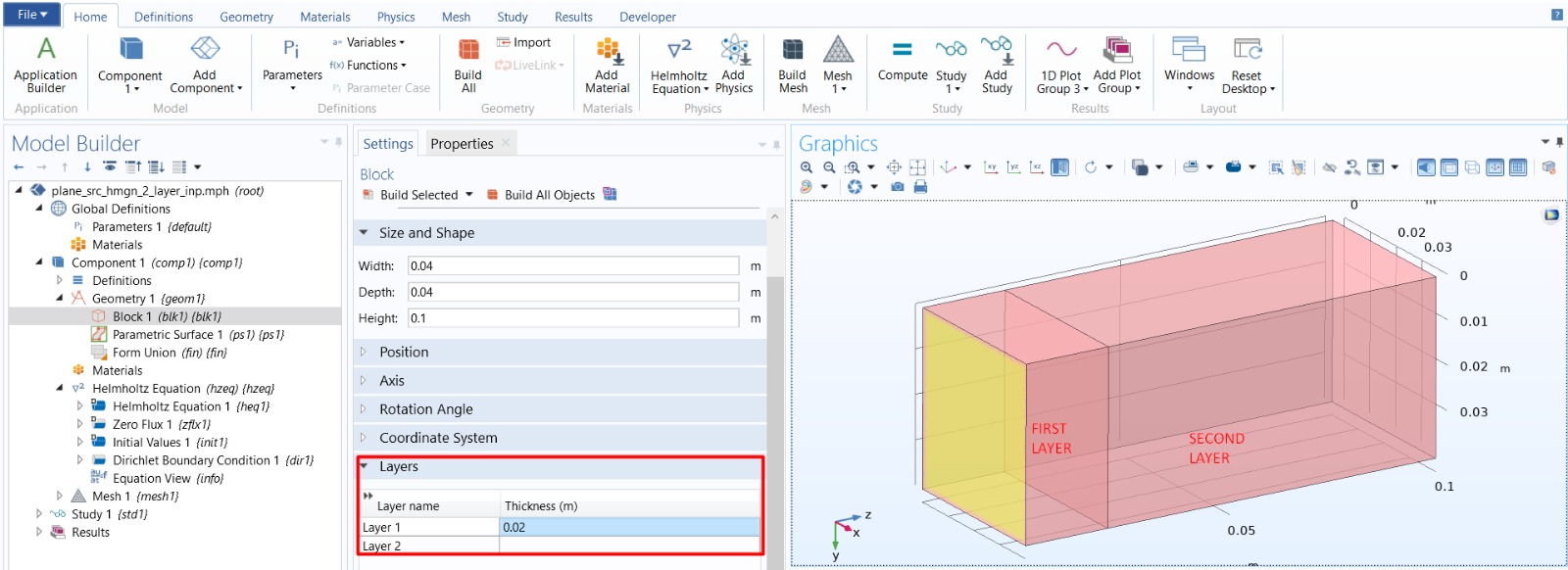

Hello all, I'm trying to simulate Light-Tissue Interaction by solving the RTE in the Diffusion Approx. The stationary form it takes is similar to the Helmholtz Equation. I've managed to get excellent results for a homogenous 3D block with isotropic optical properties. Now I'm trying to simulate 2 layers of material with different (still isotropic) optical properties. The solution propegates nicely in the first layer, but isn't going throguh to the second layer. My method: Setting up a 3D block with 2 layer Setting the Helmholtz Eq. for each layer with different coefficients. As can bee seen in the photos attached, the fluence doesn't go to the second domain.

I would appreciate some help, Oran

4 Replies Last Post 2021/06/28 4:40 GMT-4
Robert Koslover Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 2021/01/08 22:15 GMT-5

The pictures are a start, but I suggest you post your .mph file to the forum. I think that will make it easier for anyone here who wants to help to figure out what is really going on in your model.

-------------------
Scientific Applications & Research Associates (SARA) Inc.
www.comsol.com/partners-consultants/certified-consultants/sara
The pictures are a start, but I suggest you post your .mph file to the forum. I think that will make it easier for anyone here who wants to help to figure out what is really going on in your model.
Oran Meir
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 2021/01/29 5:04 GMT-5

SOLVED

The issue was I had to define Dirichlet BC as a Continuity condition at the domains interface. Without it the second equatuin didn't have any values to calculate.

Best regards, Oran

SOLVED The issue was I had to define Dirichlet BC as a Continuity condition at the domains interface. Without it the second equatuin didn't have any values to calculate. Best regards, Oran
Chironjeet Chaki
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 2021/06/27 0:15 GMT-4
Updated: 4 years ago 2021/06/27 0:16 GMT-4

Hi Oran, May I know how did you apply Dirichlet BC as a Continuity condition at the domains interface? A snapshot would be really helpful for me in the comsol setting. I'm doing the similar thing. Hope you help me.

Thanks a lot...

Hi Oran, May I know how did you apply Dirichlet BC as a Continuity condition at the domains interface? A snapshot would be really helpful for me in the comsol setting. I'm doing the similar thing. Hope you help me. Thanks a lot...
Oran Meir
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 2021/06/28 4:40 GMT-4

Hi Oran, May I know how did you apply Dirichlet BC as a Continuity condition at the domains interface? A snapshot would be really helpful for me in the comsol setting. I'm doing the similar thing. Hope you help me.

Thanks a lot...

Hi Chaki,

There's 2 options to solve this issue:

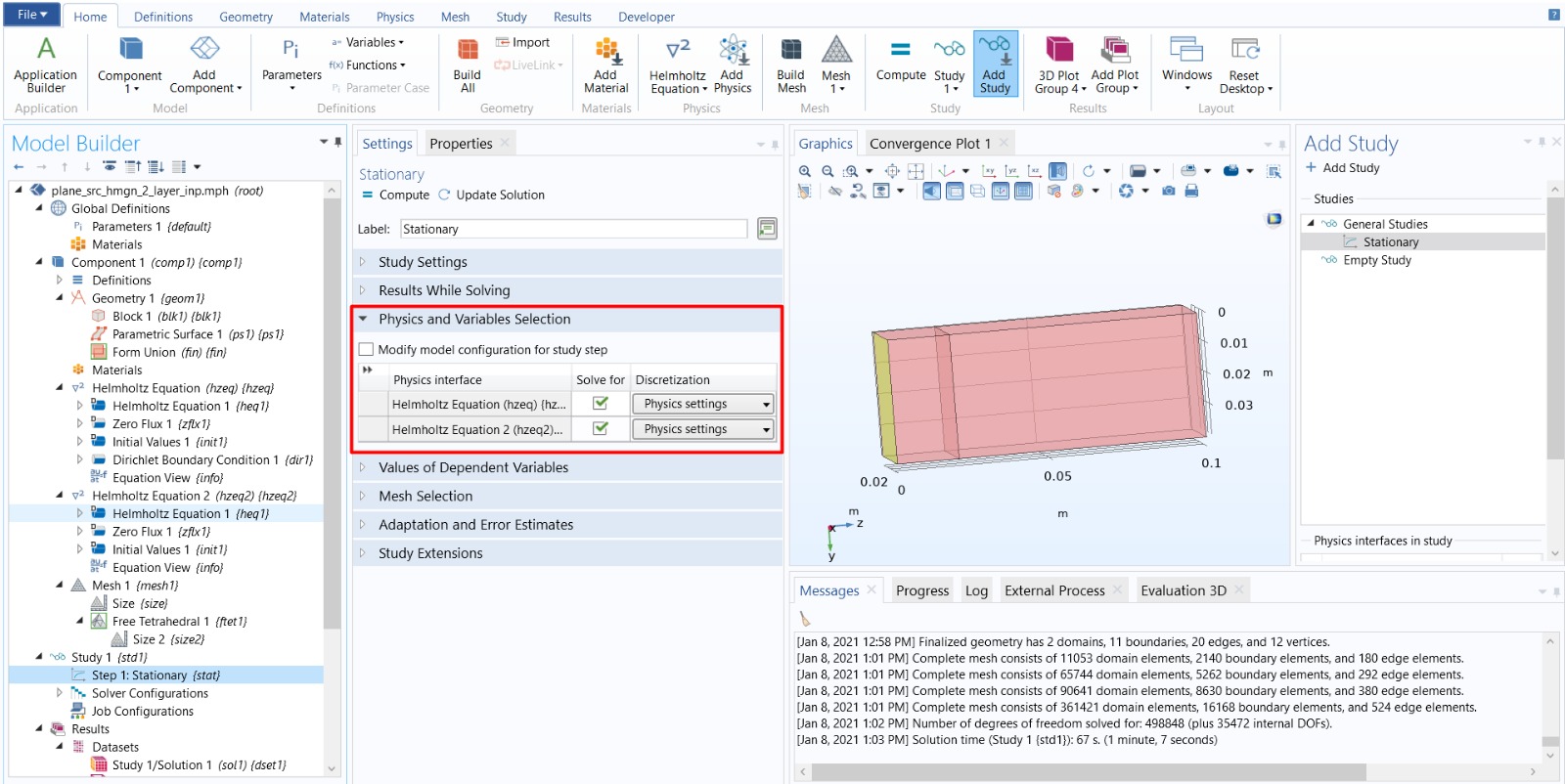

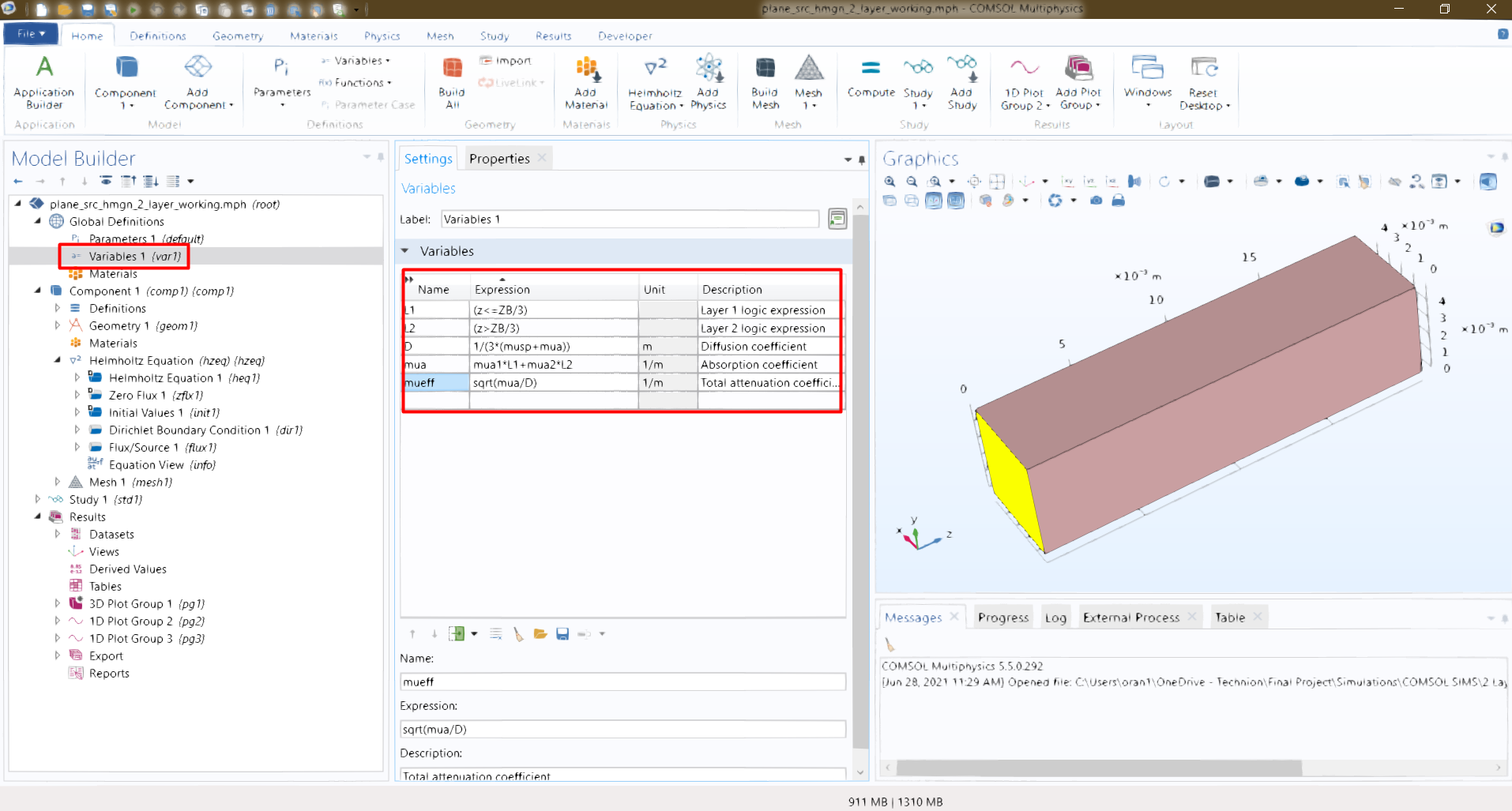

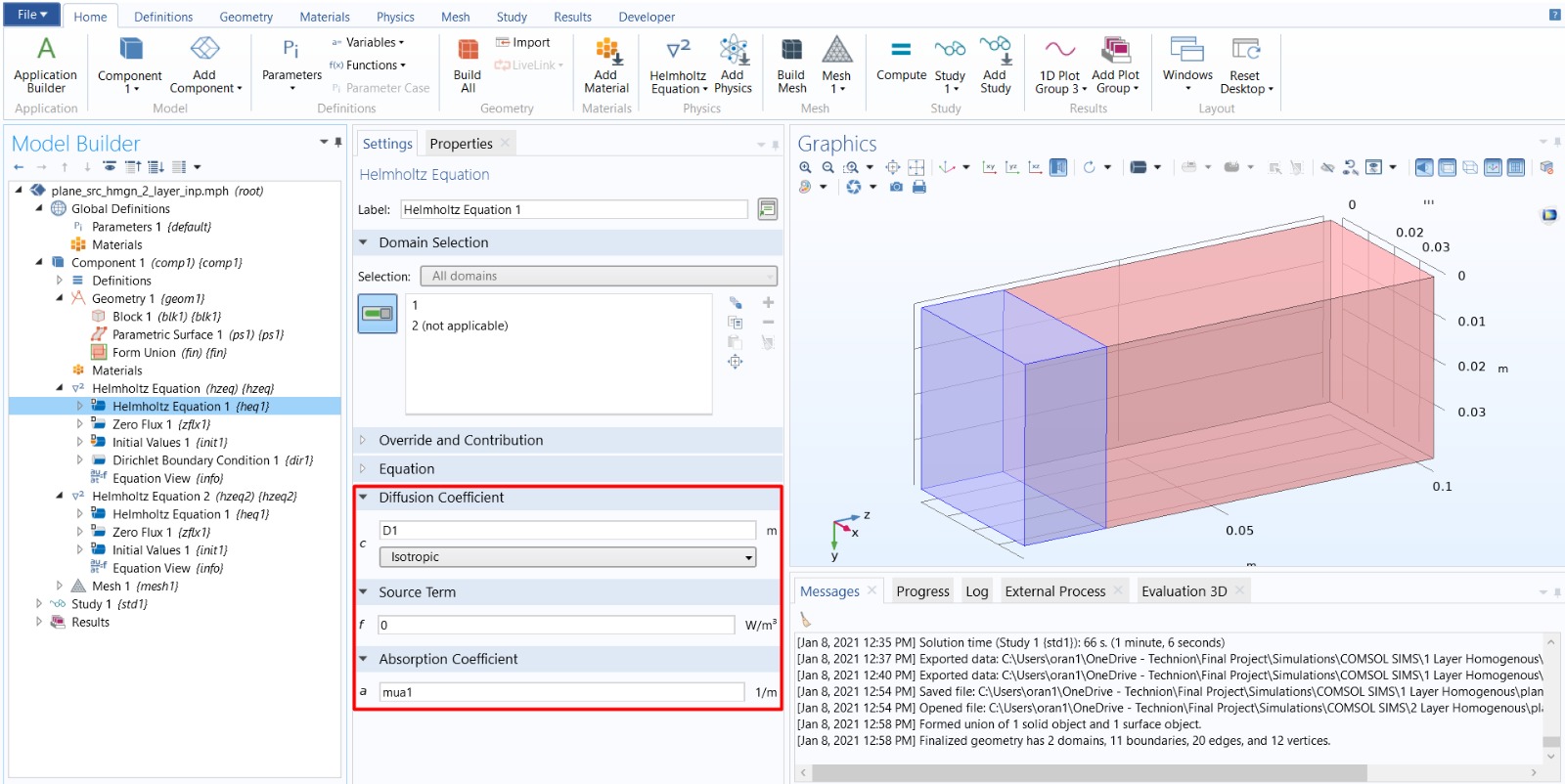

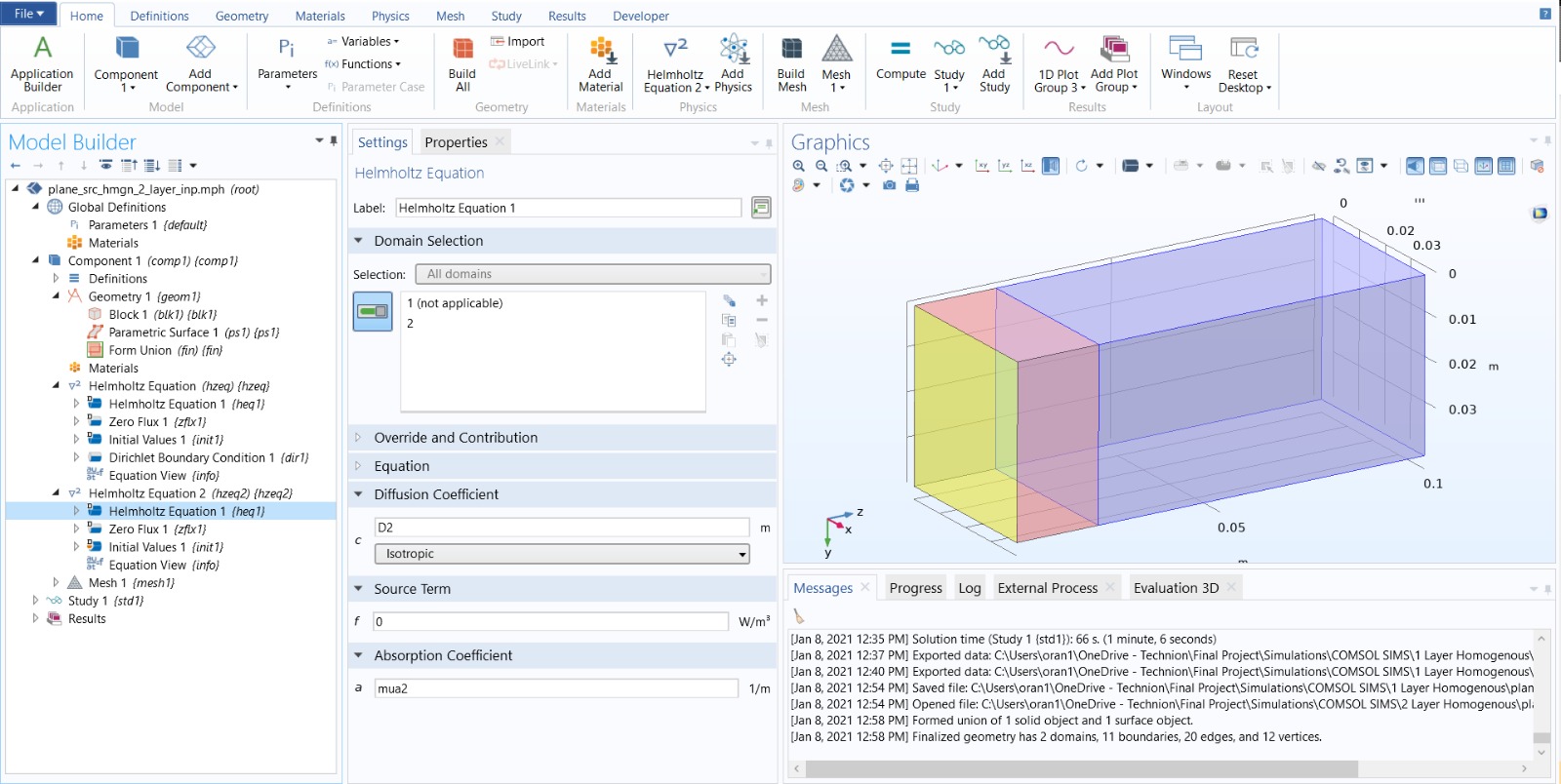

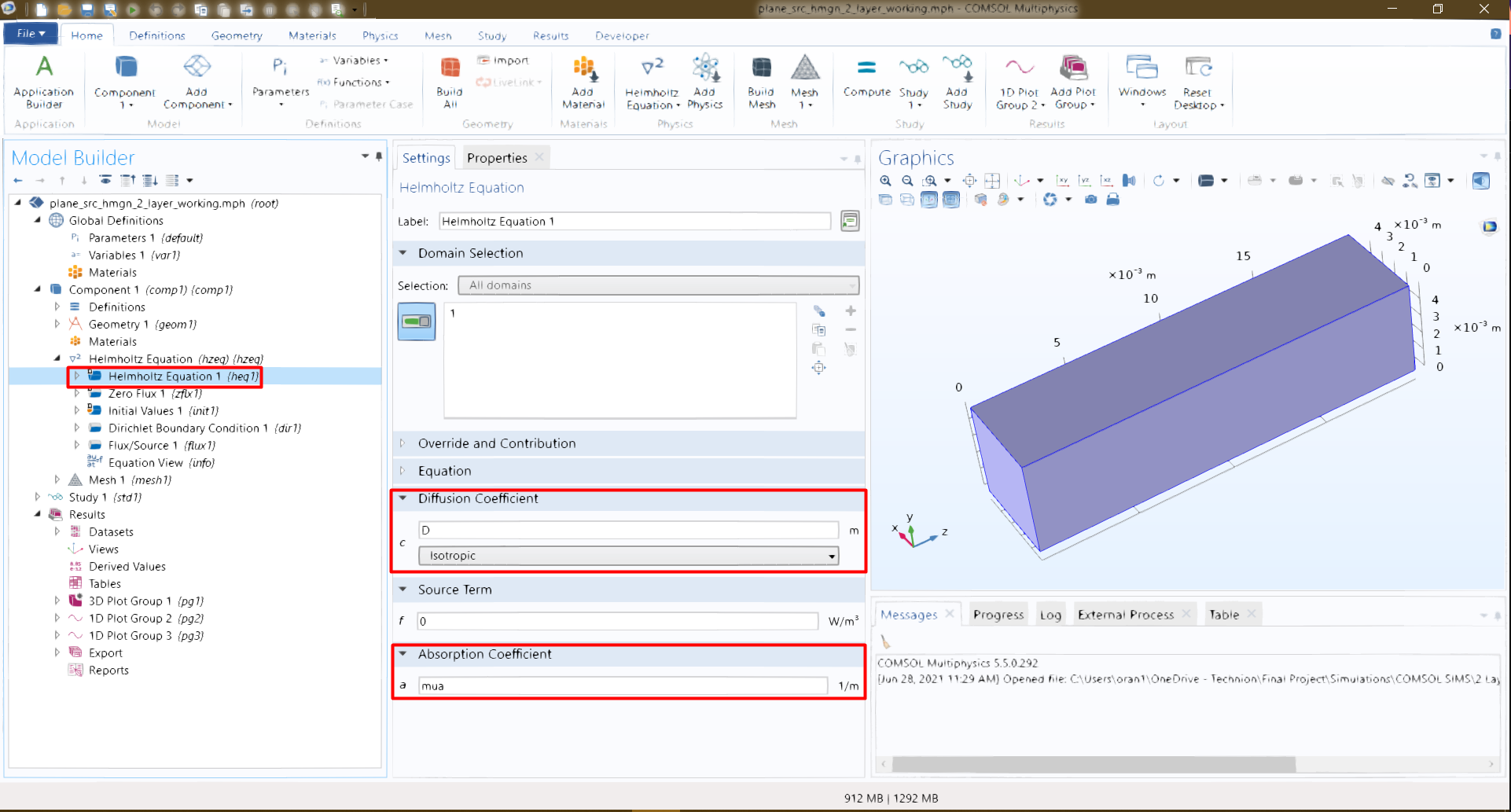

1) Define 2 Helmholtz equations within the same component. assuming your variable us , then in the second equation u define Dirichlet BC with prescribed value of . what happens is that it will take the value obatined from the first equation and apply it as continuity. unfortunately I did not use this method so I don't have pictures for you. 2) Using only 1 Helmholtz equation, you can define its parameters as variables. What I did is to define and as a step function that varies in the theoretical boundary, without actualy define a geometric doundary. that solver will handle it.

I hope you will find this helpful

>Hi Oran, >May I know how did you apply Dirichlet BC as a Continuity condition at the domains interface? A snapshot would be really helpful for me in the comsol setting. I'm doing the similar thing. Hope you help me. > >Thanks a lot... Hi Chaki, There's 2 options to solve this issue: 1) Define 2 Helmholtz equations within the same component. assuming your variable us u, then in the second equation u define Dirichlet BC with prescribed value of u. what happens is that it will take the value obatined from the first equation and apply it as continuity. unfortunately I did not use this method so I don't have pictures for you. 2) Using only 1 Helmholtz equation, you can define its parameters as variables. What I did is to define \mu_{a} and D as a step function that varies in the theoretical boundary, without actualy define a geometric doundary. that solver will handle it. I hope you will find this helpful
