How to induce voltage from PZT-5A to copper coil, which is kept at a distance of 40 mm ?
Posted 2025/04/02 1:27 GMT-4 Electromagnetics, MEMS & Piezoelectric Devices, Modeling Tools & Definitions Version 6.2 0 Replies
Please login with a confirmed email address before reporting spam
Hey there,
I'm a newbie in comsol and trying to solve one problem. A piezoelectric material, PZT-5A is being applied by an impact force of 1000 N, now due to stress there's some accumulation of charge in PZT, and I've also applied magnetic field in the surrounding, Now I want to check an induced voltage on a copper coil which is kept at 40 mm or less distance by PZT.
I'm trying everything, yet there has been no success, can anyone please help ?
P.S. The geometry is 2d axis symmetric.

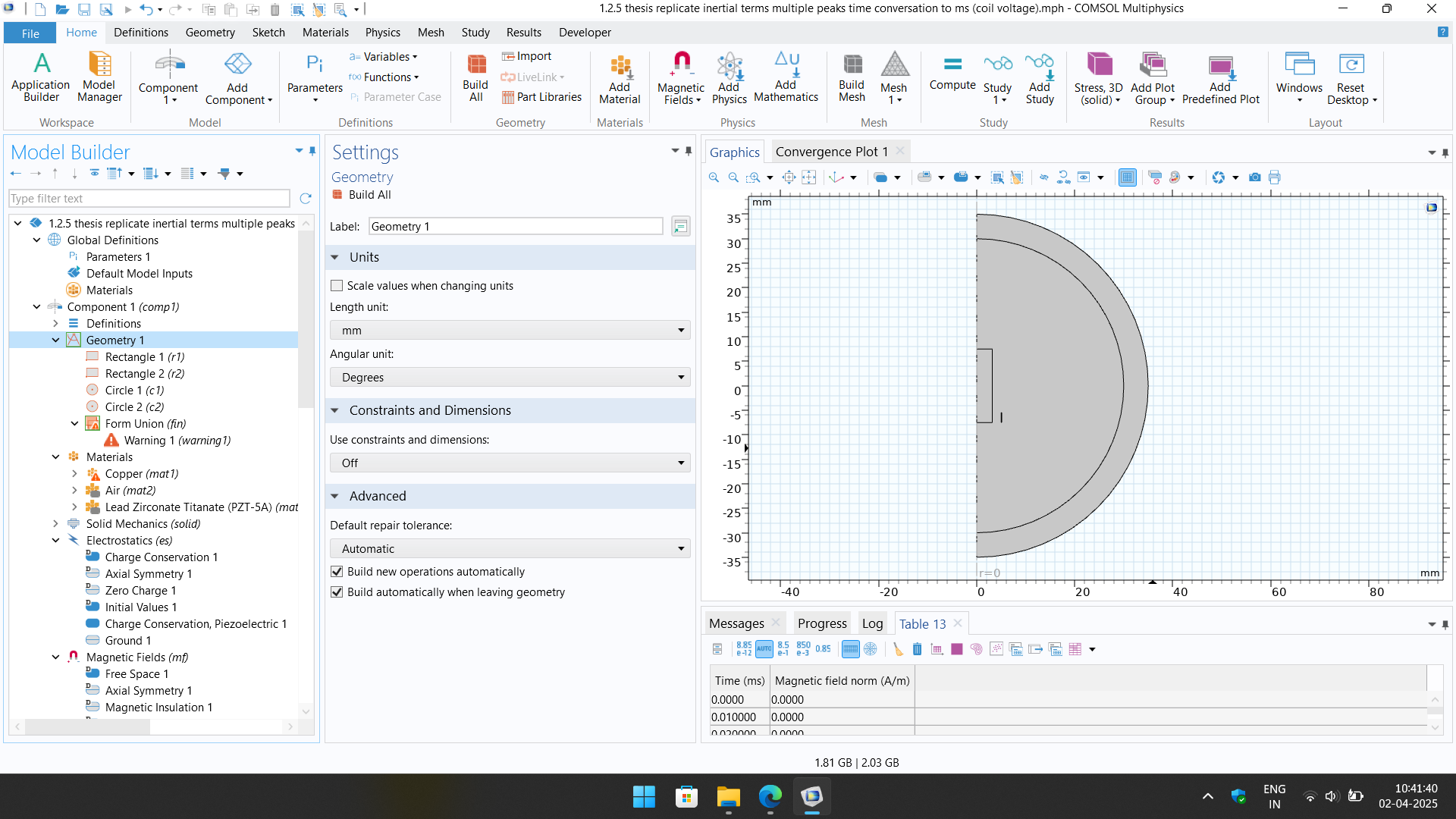

Attachments:
Hello Ashok Singh
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
