Diffusion-Induced Stress in a Lithium-Ion Battery
Application ID: 65601
Diffusion-induced stress in lithium-ion battery electrode materials can occur as a result of compositional inhomogeneities during lithium intercalation in the host material particles. These stresses are important since the electrode host material can undergo significant volume changes during charging and discharging. The accumulated structural changes can induce electrode failure in the form of particle fracture. In order to quantify the stress generated in the electrode, the elastic deformation of the material must be related to the intercalation process.

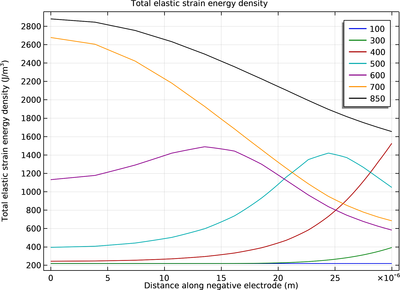

This example uses the Lithium-Ion Battery interface for analyzing diffusion-induced stress caused by concentration changes within the negative host material electrode particles, during discharge and relaxation of a lithium-ion battery. The geometry is in one dimension and the model is isothermal.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the 製品仕様一覧 and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
