Image to Curve Add-In Examples
Application ID: 84431

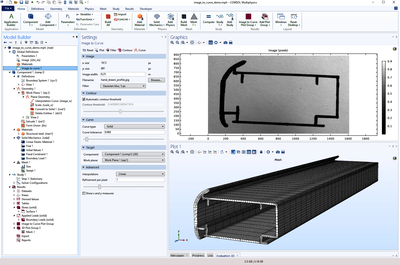

These example models demonstrate using the Image to Curve add-in, which is included in COMSOL Multiphysics®. One example shows a simple structural analysis. An image of an H-beam is imported to a work plane and then extruded. A distributed load is applied to the beam's top surface. The other example shows how to convert a profile, drawn with a black marker on a piece of paper, to a 3D model with a swept mesh.
Learn more about how to use the Image to Curve add-in in this accompanying blog post.
