Ohmic and activation losses in a polymer electrolyte membrane water electrolyzer cell
Application ID: 139561
In a polymer electrolyte membrane water electrolyzer cell, hydrogen and oxygen gas is produced by electrolysis. The hydrogen and oxygen compartments are separated by a polymer membrane, that also acts as electrolyte.

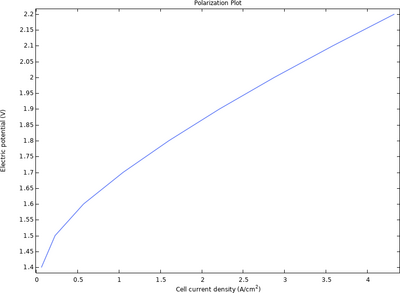

This introductory tutorial computes the ohmic and activation losses in a membrane-electrode assembly (MEA) in a polymer-electrolyte membrane water electrolyzer. The model geometry is in 1D and comprises two porous transport layers (PTLs) and one membrane domain.
The exterior boundaries of the hydrogen and oxygen PTLs are assumed to be at equilibrium with fully humidified gas streams, and gas diffusion is assumed to be fast, hence no mass transport or momentum transfer is included in the model

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
