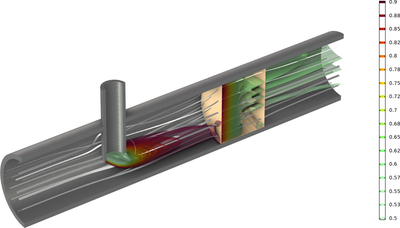

Porous Catalytic Reactor with Injection Needle
Application ID: 25
Modeling packed beds, monolithic reactors, and other catalytic heterogeneous reactors is substantially simplified with the Reacting Flow in Porous Media multiphysics interface. This defines the diffusion, convection, migration, and reaction of chemical species for porous media flow without having to set up separate interfaces and couple them. The multiphysics interface automatically combines all of the couplings and physics interfaces required for the modeling of heterogeneous catalysis together with porous media flow and dilute or concentrated chemical species transport.
As this multiphysics interface complements similar ones for laminar and turbulent flow, you can switch or define new couplings to other types of flow models without having to redefine and set up a new interface for the participating physical phenomena. The Settings window allows you to select the type of flow to be modeled as well as the transport of chemical species without losing any of the defined material properties or reaction kinetics. This means that you can compare different reactor structures or model flow in both free and porous media in one reactor, even when the two regimes are connected.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
