Startup of a Continuous Stirred Tank Reactor
Application ID: 1858
The hydrolysis of propylene oxide into propylene glycol is an important chemical process with 400,000 metric tons produced worldwide each year. Propylene glycol finds wide application as a moisturizer in foods, pharmaceuticals, and cosmetics.
In this example, the startup phase of a continuous stirred tank reactor (CSTR) used to produce propylene glycol is investigated. The non-isothermal process is described by a set of coupled mass and energy balances that you easily set up and solve.

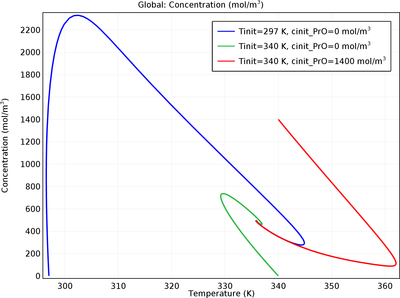

The model highlights the use of the predefined CSTR reactor type and also shows how to enter thermodynamic data needed for the energy balances. Results show how certain initial conditions lead to violation of the reactor safety limits.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
