Tank Series with Feedback Control

Application ID: 3819


This example illustrates how to set up and solve a tank-in-series model in 0D using the Reaction Engineering interface.

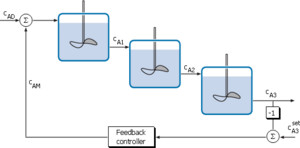

The model treats a series of three consecutive tank reactors. A feedback loop continuously adjusts the inlet concentration of the first tank to keep the concentration at the outlet of the last reactor close to a set level.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
