Vector Hysteresis Modeling
Application ID: 20671
This tutorial is a benchmark model that reproduces the Testing Electromagnetic Analysis Method (TEAM) Problem 32, which evaluates numerical methods for the simulation of anisotropic magnetic hysteresis. A hysteretic three-limbed laminated iron core is subject to a time-varying magnetic field generated by two coils. The Jiles-Atherton material model (available in the Magnetic Fields interface) is used to simulate the response of the material, reproducing published experimental and numerical data.
The coils are excited by AC voltage sources that are phase-shifted by 90 degrees with respect to each other, creating a magnetic field that rotates in some regions of the core. The applied magnetic field is mainly oriented in the xy-plane, while the material is anisotropic and so reacts differently to fields applied along the x- or y-direction.

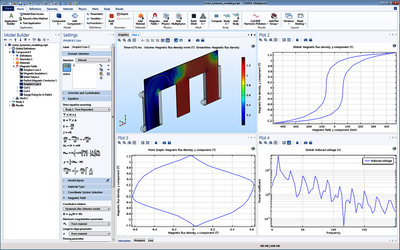

A vector hysteresis model is necessary to accurately simulate the time-dependent field, and the hysteretic behavior is displayed by plotting the magnetic flux density as a function of the magnetic field during one AC cycle (corresponding to one hysteresis loop). A direct solver (PARDISO) is used instead of the default iterative solver where the Gauge Fixing for A-Field feature is applied.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
