Circularly Polarized Antenna for GPS Applications

Application ID: 15835

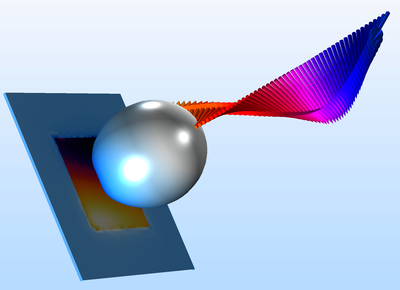

One way to generate circular polarization from a microstrip patch antenna is to truncate the patch radiator. This model is tuned around the GPS frequency range. The axial ratios are calculated to show the degree of circular polarization.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
