Eigenfrequency Analysis of a Free Cylinder

Application ID: 271

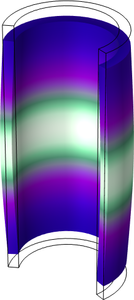

This model calculates the eigenfrequencies and mode shapes of an unconstrained cylinder in axisymmetry.

The model is taken from NAFEMS Free Vibration Benchmarks. The eigenfrequencies are compared with the values given in the benchmark report.

This model example illustrates applications of this type that would nominally be built using the following products:

構造力学モジュール
