High Voltage Insulator
Application ID: 73561

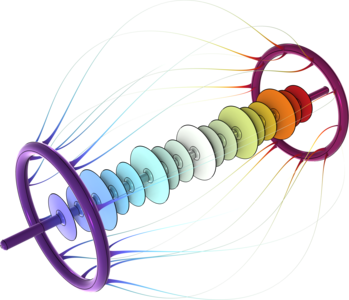

This example demonstrates how to use the Electrostatic interface to calculate the surface electric field of a typical high-voltage insulator. It is shown that the inhomogeneity and the maximum of the surface electric field are greatly reduced with the installation of the grading rings. In this way, the high-voltage insulator is able to withstand a higher overvoltage.
この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- either the AC/DCモジュール, MEMS モジュール, プラズマモジュール, or 半導体モジュール
アプリケーションのモデリングに必要なCOMSOL®製品の組み合わせは, 境界条件, 材料特性, 物理インターフェース, 部品ライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償評価ライセンスをご利用ください. COMSOL セールスおよびサポートチーム](/contact) では, この件に関するご質問にお答えしています.
