Luneburg Lens

Application ID: 18455

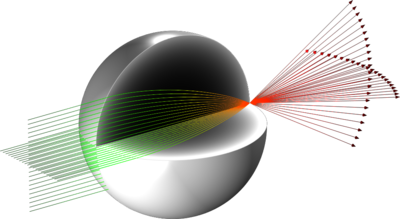

A Luneburg lens has a graded refractive index which leads to special focusing properties. This example model uses the Geometrical Optics interface to compute the ray trajectories and their optical path length.

This model example illustrates applications of this type that would nominally be built using the following products:

光線光学モジュール
