Removing Details in Model Geometries
Application ID: 75331

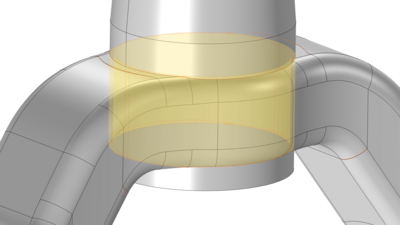

The model remove details example v63.mph illustrates how to manually add the Remove Details operation and virtual operations to find and remove small details from a model geometry.
In the model geometry cleanup example v63.mph, the automatic Geometry Cleanup added Remove Details operations to clean the geometry. In the second component, The cleanup was first run with the automatic detail size and was then restarted with the automatic detail size 1 mm to also remove the overlap domain.
Learn more in this blog post: "How to Automatically Remove Small Details in Your Model Geometry"

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
