Small-Signal Analysis of a MOSFET

Application ID: 16381

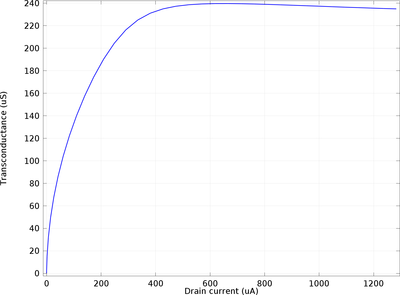

This model shows how to compute the AC characteristics of a MOSFET. Both the output conductance and the transconductance are computed as a function of the drain current.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
