Unsteady 3D Flow Past a Cylinder

Application ID: 73041

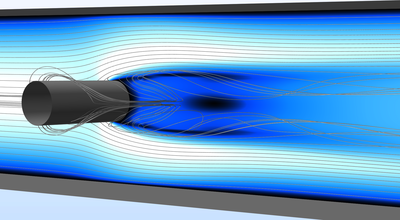

This example simulates 3D unsteady laminar flow past a cylinder in a channel. The inflow velocity profile is time-varying. The lift and drag coefficients are computed, and results show good agreement with those published in the literature.

This model example illustrates applications of this type that would nominally be built using the following products:
