Protein Adsorption
Application ID: 1397
Ion-exchange is a powerful method to separate proteins from solutions and is today readily used in biotechnological and pharmaceutical industry.

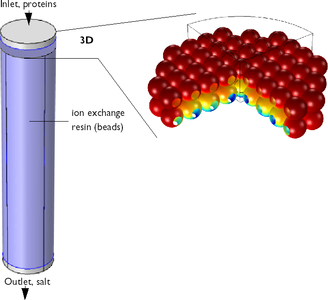

This model simulates an ion-exchange column for protein adsorption. The fluid phase contains four components: two proteins, solvent, and one salt. The adsorption/desorption kinetics is described by two equilibrium reactions where proteins displace ions adsorbed at the surface and vice versa.
The example highlights how reactions at chemical equilibrium can be studied in a 0D reactor system in Reaction Engineering. In addition, it also shows how the kinetics from the 0D setup is exported to a 3D model where the reacting surface in the column can be studied in detail. The 3D model incorporates mass transport through diffusion and convection, and the reactions at the surface of the ion-exchange mass with Transport of Diluted Species, Free and Porous Media Flow, and Surface Reactions interfaces.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- either the 化学反応工学モジュール, or 電気放電モジュール and
- either the バッテリデザインモジュール, 化学反応工学モジュール, 腐食解析モジュール, 電気化学モジュール, 電気めっきモジュール, or 燃料電池&電解槽モジュール
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
