Bracket — Fatigue Evaluation
Application ID: 17213
The S-N curve, also called the Wöhler curve, is one of the most popular methods for fatigue evaluation. The curve relates stress amplitude to the limiting fatigue life and can be obtained directly from a set of standard fatigue test. Many times our applications are subjected to conditions different from the experimental conditions of the fatigue tests. The fatigue data must then be appropriately modified in order to take the actual operating conditions into account.

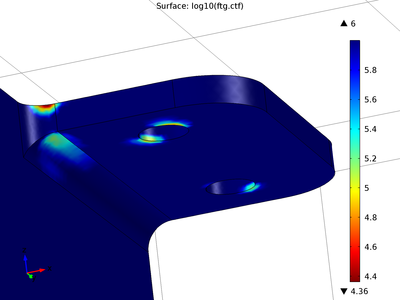

In the example it is shown how to perform a fatigue evaluation when the material data needs to account for harsh environmental conditions and poor material process. A parametric sweep is used to evaluate fatigue response of two conditions. A tutorial model from the Structural Mechanics Module of a bracket is examined.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- 疲労解析モジュール and
- 構造力学モジュール
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
