Current Distribution in a Chlor-Alkali Membrane Cell

Application ID: 1813

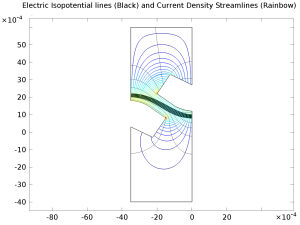

The chlor-alkali membrane process is one of the largest in industrial electrolysis with the production of roughly 40 million metric tons of both chlorine and caustic soda per year. Chlorine is used predominantly for the production of vinyl chloride monomer, which in turn is used for the production of poly vinyl chloride (PVC). Current density in membrane-cell technology has increased dramatically during the last decade as the membranes themselves have improved. This results in lower investment costs for greater production. However, the increase in current density implies an increase in power consumption if nothing is done to dampen the voltage increase. Advances in cell design including increased internal convection, decreased ohmic losses, and better membranes have allowed for large increases in current density with small increases in cell voltage. This example describes the current-density distribution in realistic anode and cathode structures in a membrane cell.

This application was built using the following:


The combination of COMSOL® products required to model your application depends on the physics interfaces that define it. Particular physics interfaces may be common to several products (see the Specification Chart for more details). To determine the right combination of products for your project, you should evaluate all of your needs in light of each product\'s capabilities, consultation with the COMSOL Sales and Support teams, and the use of an evaluation license.
