Electromagnetic Force Calculation Using Virtual Work and Maxwell Stress Tensor

Application ID: 20681

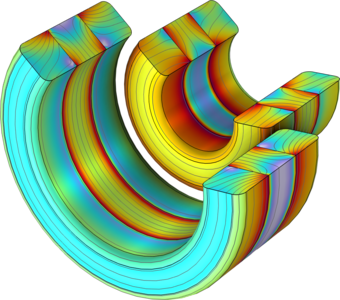

The model compare the electromagnetic force calculated by virtual work and maxwell stress tensor methods on the axial magnetic bearing. The forces is evaluated by studying the effect of a small displacement on the electromagnetic energy of the system. This is done by using the Magnetic Fields, Deformed Geometry and Sensitivity physics interfaces.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
