Evaluation of Dynamic Coefficients of a Cylindrical Journal Bearing

Application ID: 78201

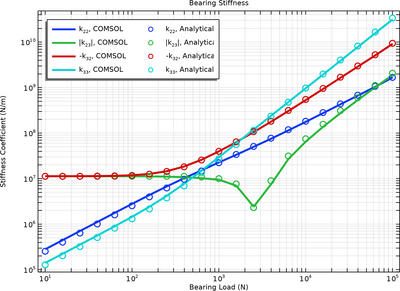

When analyzing rotors, it is common that bearings are modeled through their effective dynamic coefficients about a static equilibrium position. This model illustrates how to compute such coefficients for a cylindrical journal bearing. The bearing length is kept much smaller than its diameter in order to verify that the calculated coefficients match corresponding analytical values for a short bearing approximation.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
