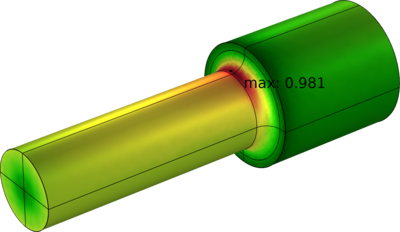

Fatigue Analysis of a Nonproportionally Loaded Shaft with a Fillet

Application ID: 2202


This example shows how to perform a High Cycle Fatigue (HCF) analysis with a non-proportional load history caused by a transversal force and a torque which are applied in different combinations. Three different fatigue models (Findley, Matake, and Dang Van) are compared.

This model example illustrates applications of this type that would nominally be built using the following products:

疲労解析モジュール
