Fuel Cell Bipolar Plate
Application ID: 14
A fuel cell stack operates at temperatures just below 100 °C, which means that it has to be heated at start-up. The fuel cell stack consists of unit cell of anode, membrane, and cathode connected in series through bipolar plates.

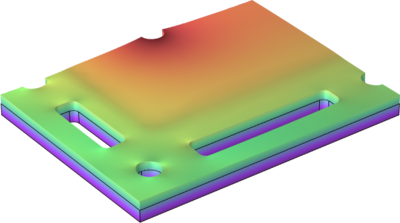

This study presents a model that couples the thermal and structural deformations in a fuel cell bipolar plate. The magnitude and position of the thermal stresses are studied in this model.
This model example illustrates applications of this type that would nominally be built using the following products:構造力学モジュール
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the 製品仕様一覧 and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
