Inductance Matrix Calculation of PCB Coils

Application ID: 89921

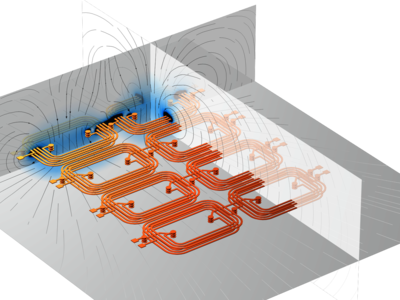

This model demonstrates how to use the Magnetic Fields, Currents Only interface together with the Stationary Source Sweep with Initialization study to compute the inductance matrix of PCB coils with a number of 12.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
