Cross-Flow Mass Transfer in a Thin Domain
Application ID: 102931

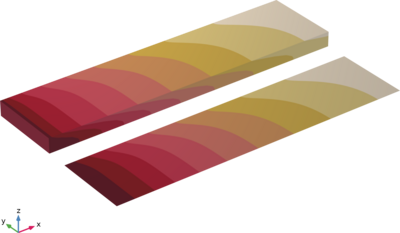

This application shows how mass transfer out from a thin 3D domain can be approximated using a 2D component with the domain feature Out-of-Plane Flux. This feature is useful when the concentration gradient in the out-of-plane direction (along the thickness) is small, and decreasing the computational time is important. In this example, the Transport of Concentrated Species and Laminar Flow physics interfaces are used to solve for the mass transfer and fluid flow. The Reacting Flow multiphysics coupling feature is used to couple the physical properties. The out-of-plane thickness, which is constant throughout the domain, is varied from 1 mm to 5 mm. As will be shown, by approximating the thin 3D component with a corresponding 2D component, the solution time decreases without a significant decrease in accuracy.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- either the CFD モジュール, or マイクロフルイディクスモジュール and
- either the バッテリデザインモジュール, CFD モジュール, 化学反応工学モジュール, or 燃料電池&電解槽モジュール
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
