Mechanical Multiport System: Elastic Wave Propagation in a Small Aluminum Plate
Application ID: 90121

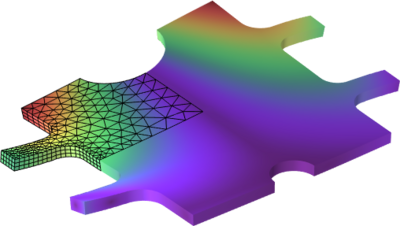

In this tutorial, the vibrational behavior of a small aluminum plate with four waveguide structures is analyzed. This is an example of a structural component located in a device where elastic waves are propagating, like a smart speaker, an electric motor, or a MEMS device. The plate can be thought of as a mechanical multiport system. The model uses the port boundary condition at the inlet/outlet of the waveguide structures. The port conditions consistently capture and treat the different propagating elastic modes like longitudinal, transverse, and torsional waves. The transmission and reflection of the various modes is characterized through the scattering matrix of the system, which is computed automatically. This allows the vibrational behavior of the component to be characterized in great detail, for example, for subsequent use in a system simulation.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- either the 音響モジュール, MEMS モジュール, or 構造力学モジュール
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
