Modeling Vibration in an Induction Motor
Application ID: 47871

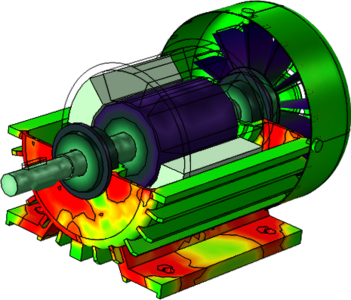

In the Vibration in an Induction Motor tutorial model, eddy currents are induced in the rotor by time-harmonic currents in the stator windings and rotation of the rotor. Induced currents in the rotor interact with the magnetic field that is produced by the coils to generate the driving torque on the rotor. The air gap between the rotor and stator is asymmetric, resulting in vibrations in the motor.
The electromagnetic simulation is modeled in 2D, whereas the multibody dynamics simulation is modeled in 3D. The rotational torque is calculated as a function of time. The torque is then used in the multibody dynamics model in order to compute the rotor speed, accounting for inertial effects. Due to resistive losses and loading torque on the shaft, the rotor will not revolve as fast as the stator windings, so an angular slip will occur.
Find out more about this example in a related blog post: "Analyzing the Structural Integrity of an Induction Motor with Simulation"
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the 製品仕様一覧 and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
