Optimization of a Tesla Microvalve
Application ID: 14513

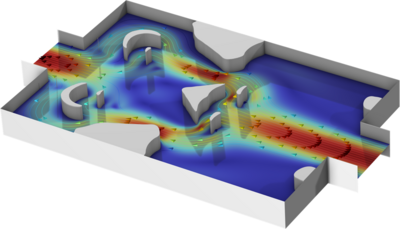

This model performs a topological optimization for a Tesla microvalve. A Tesla microvalve inhibits backwards flow using friction forces rather than moving parts. The design can be optimized by distributing a specific amount of material within the modeling domain. The goal is to maximize the ratio of the pressure drop for the forwards and backwards flow across the device.
This model is included as an example in the following products:マイクロフルーイディクスモジュール
however additional products may be needed to reproduce it. This example may be created and run using components from the following product combinations:
- COMSOL Multiphysics® and
- 最適化モジュール and
- either the バッテリー＆燃料電池モジュール, CFDモジュール, 化学反応工学モジュール, 腐食解析モジュール, 電気化学モジュール, 電気めっきモジュール, 伝熱モジュール, マイクロフルーイディクスモジュール, パイプ流れモジュール, プラズマモジュール, or 地下水流モジュール
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the 製品仕様一覧 and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
