Parameter Optimization of a Tesla Microvalve

Application ID: 69591

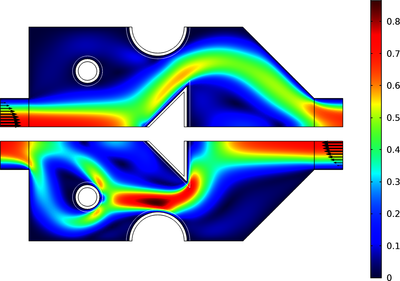

The topology optimized Tesla microvalve is used as inspiration for a parametrized geometry. The optimization of this geometry takes erosion and dilation of the geometry into account by optimizing over a parametric sweep. In this example the optimization is driven by the worst of the 3 geometries realized in every parametric sweep.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
