Plasmonic Wire Grating (Wave Optics)
Application ID: 14705
Surface plasmon-based circuits are being used in applications such as plasmonic chips, light generation, and nanolithography. The Plasmonic Wire Grating Analyzer application computes the coefficients of refraction, specular reflection, and first-order diffraction as functions of the angle of incidence for a plasmonic wire grating on a dielectric substrate.
The model describes a unit cell of the grating, where Floquet boundary conditions define the periodicity. Postprocessing functionality allows you to expand the number of unit cells and extract the visualization into the third dimension.
Built into the app is the ability to sweep the incident angle of a plane wave from the normal angle to the grazing angle on the grating structure. The app also allows you to vary the radius of a wire as well as the periodicity or size of the unit cell. Further parameters that can be varied are the wavelength and orientation of the polarization.

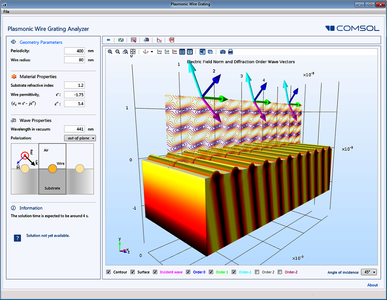

The application presents results for the electric field norm for multiple grating periodicity for selected angles of incidence, the incident wave vector and wave vectors for all reflected and transmitted modes, and the reflectance and transmittance.
