Random Vibration Test of a Motherboard

Application ID: 75781

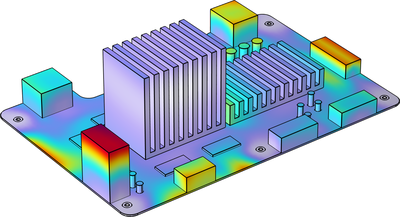

In this example, a random vibration test of electronic equipment is simulated. Three analyses are performed, one for acceleration in each global direction. Accelerations in the components and forces in clamping bolts are evaluated.
