Temperature-Dependent Plasticity in Pressure Vessel
Application ID: 12805
This example demonstrates how to use temperature dependent materials within the Nonlinear Structural Materials Module.

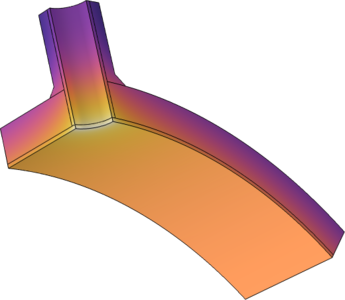

A large container holds pressurized hot water. Several pipes are attached to the pressure vessel. Those pipes can rapidly transfer cold water in case of an emergency cooling. The pressure vessel is made of carbon steel with an internal cladding of stainless steel. In case of a fast temperature transient, the differences in thermal expansion properties between the materials will cause high stresses.
This model example illustrates applications of this type that would nominally be built using the following products:非線形構造材料モジュール
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
- COMSOL Multiphysics® and
- either the ジオメカニクスモジュール, or 非線形構造材料モジュール and
- either the MEMSモジュール, or 構造力学モジュール
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the 製品仕様一覧 and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
