Joule Heating of a Microactuator
Application ID: 8493

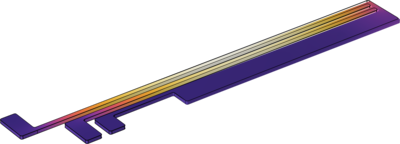

This tutorial model of a two-hot-arm thermal actuator couples three different physics phenomena: electric current conduction, heat conduction with heat generation, and structural stresses and strains due to thermal expansion.
The model exists in three versions:
Joule Heating of a Microactuator (thermal_actuator_jh.mph): In this model version, only the currents and temperatures are computed, while the deformation is ignored. Only the COMSOL Multiphysics license is required.
Thermal Actuator (thermal_actuator_tem.mph): In this model version, a fully coupled electrical-thermal-structural analysis is performed. A license for either the Structural Mechanics Module or the MEMS Module is required.
Thermal Actuator - Parameterized (thermal_actuator_tem_parameterized.mph): This model is identical to the previous, except that the geometry is parameterized so that the effect of varying the actuator's dimensions can be analyzed. A license for either the Structural Mechanics Module or the MEMS Module is required.
