Topology Optimization of a Magnetic Circuit
Application ID: 43511

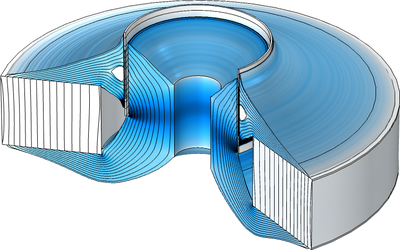

This model presents two examples of topology optimization of the magnetic circuit of a loudspeaker driver. A first optimization is used to find the design of a nonlinear iron pole piece and top plate that maximize the BL factor at the resting position (small displacements), while constraining the amount of iron used. A second optimization is used to find a design of the magnetic circuit with a flat BL curve, while constraining the amount of iron used. This results in a design that reduces the nonlinearities for large displacements of the speaker cone. The design generated in the second optimization is validated in a new study, showing good agreement with the topology results. Both designs are compared with a traditional design showing improved performance while requiring a reduced amount of iron.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the 製品仕様一覧 and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
