Geometric Parameter Optimization of a Bracket

Application ID: 90011

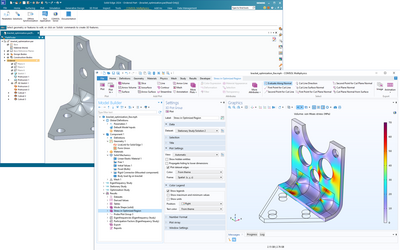

This tutorial minimizes the mass of a bracket that is synchronized from Solid Edge® via the LiveLink™ interface.

There are limits both for the lowest natural frequency, and for the maximum stress in a static load case. The size and position for a number of geometrical features is changed to optimize the mass, while several geometrical constraints are enforced to maintain the design intent.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
