High-Cycle Fatigue of a Reciprocating Piston Engine
Application ID: 17155

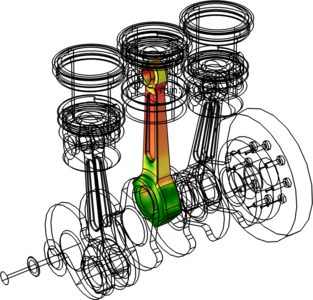

In a reciprocating piston engine, the connecting rods are subjected to high cyclic stresses that increase with engine speed. Because failure of a critical component can lead to failure of the engine, fatigue life is an important consideration in the design of these components. In this example, the connecting rods are identified as critical components, and their fatigue life is predicted using the Basquin high-cycle fatigue criterion.
The example is based on the Three-Cylinder Reciprocating Engine model from the Multibody Dynamics Module. The critical component is modeled as flexible, while the remaining components are modeled as rigid and connected using joints. This approach significantly reduces the model size while maintaining force equilibrium in the assembly.
この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- 疲労解析モジュール and
- マルチボディダイナミクスモジュール and
- 構造力学モジュール
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
